Architecture

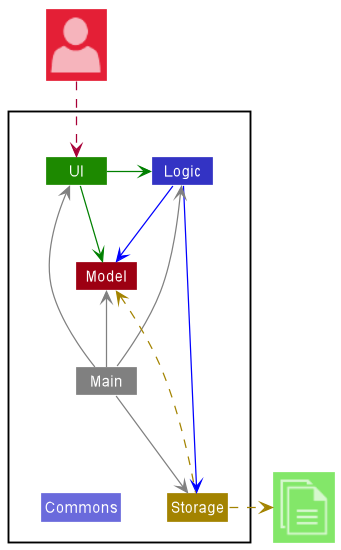

Figure 1

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

  • At app launch: Initializes the components in the correct sequence, and connects them up with each other.
  • At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

  • UI: The UI of the App.
  • Logic: The command executor.
  • Model: Holds the data of the App in memory.
  • Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete student 1.

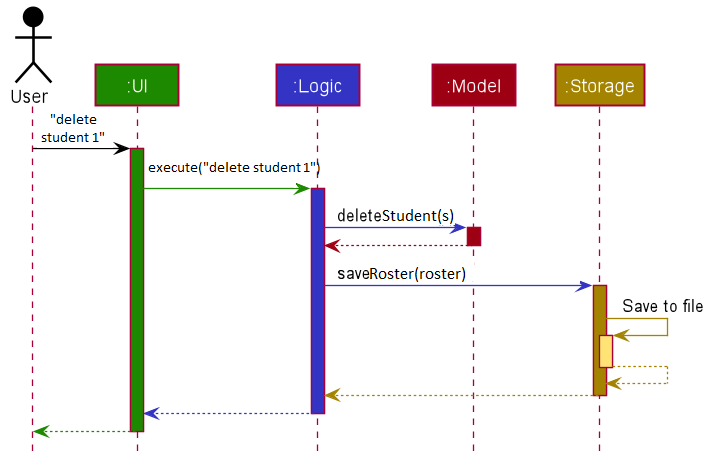

Figure 2

Each of the four main components (also shown in the diagram above),

  • defines its API in an interface with the same name as the Component.
  • implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

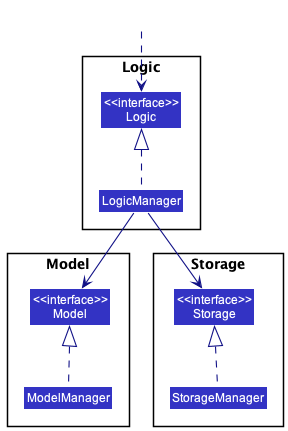

Figure 3

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java and uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

UI Packages

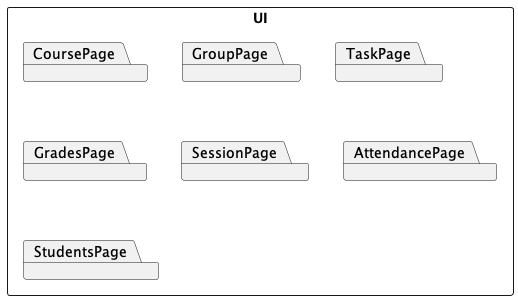

Figure 4: Packages in the UI component

As CLIpboard is a multi-page application, it is made up of different UI components corresponding to each page. The UI classes relevant to each page are classified in their own individual packages as shown in Figure 3.

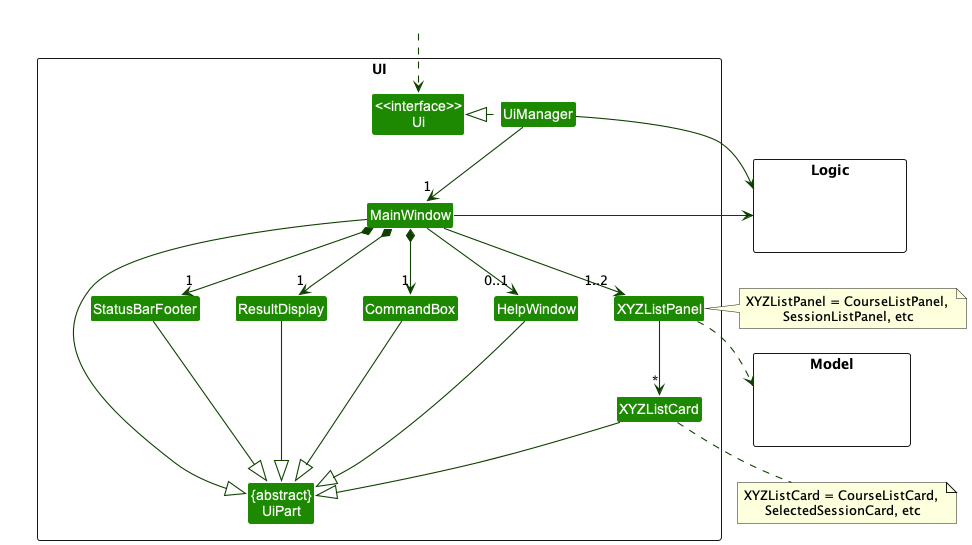

Structure of the UI Component

Figure 5

The UI also consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, HelpWindow, and StatusBarFooter. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI. These parts also remain visible as the user navigates through the different pages in the GUI.

Initialising the UI

Homepage

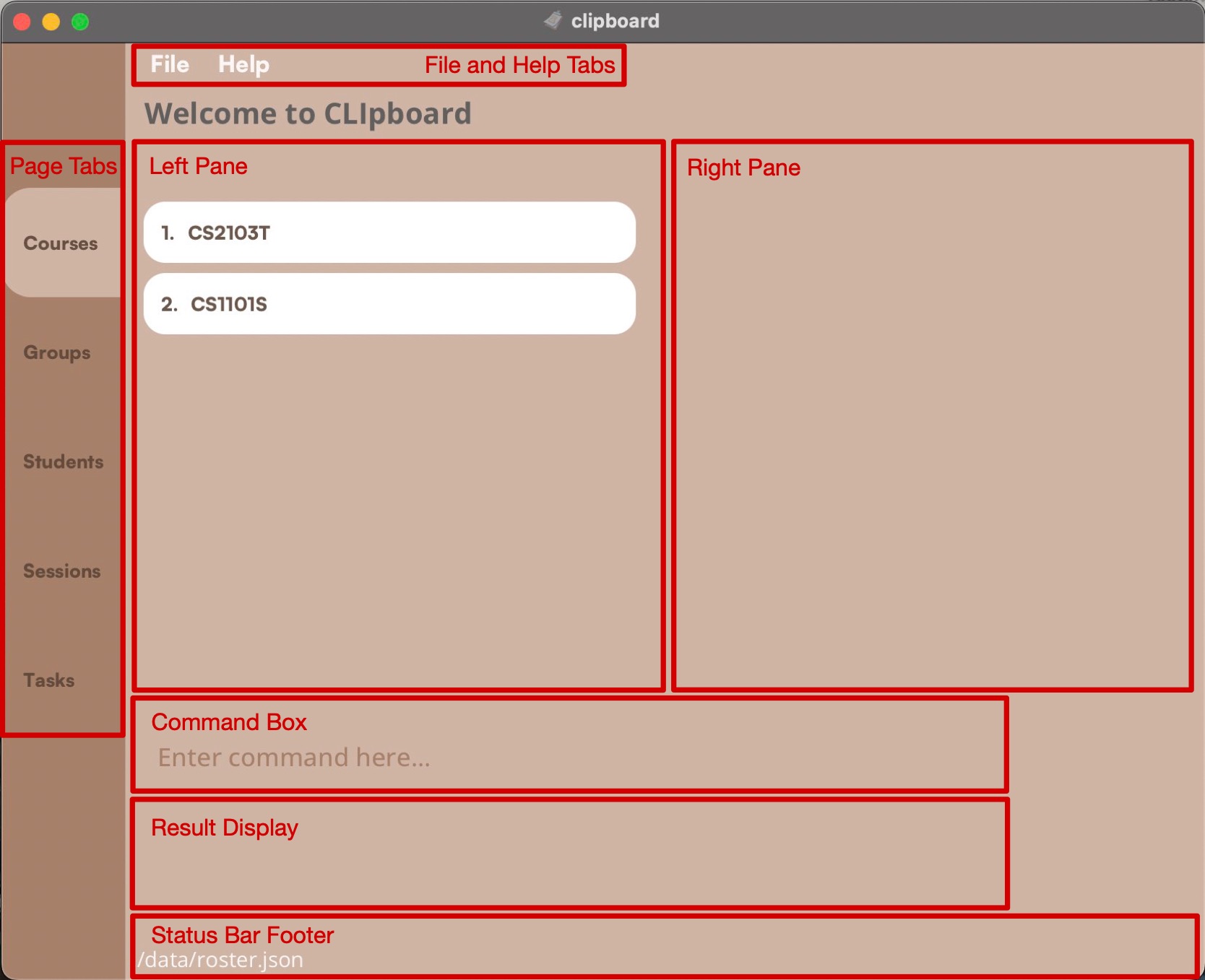

Figure 6: CLIpboard landing page

The UiManager is a controller class containing the start method which initialises the UI in the following sequence:

  1. Instantiate a new MainWindow object.
  2. show the MainWindow object.
  3. Populate the UI window using the the fillInnerParts method of MainWindow.

The MainWindow#fillInnerParts method will populate the UI by:

  1. Populating the Left Pane with a CourseListPanel.
  2. Populating the pageTab
  3. Populating the commandBox
  4. Populating the resultDisplay
  5. Populating the statusBarFooter

As shown in Figure 6, users will be shown the Course Page upon launching the application. The GUI will then refresh accordingly as the user navigates through the different pages in the application.

Logic component

API : Logic.java

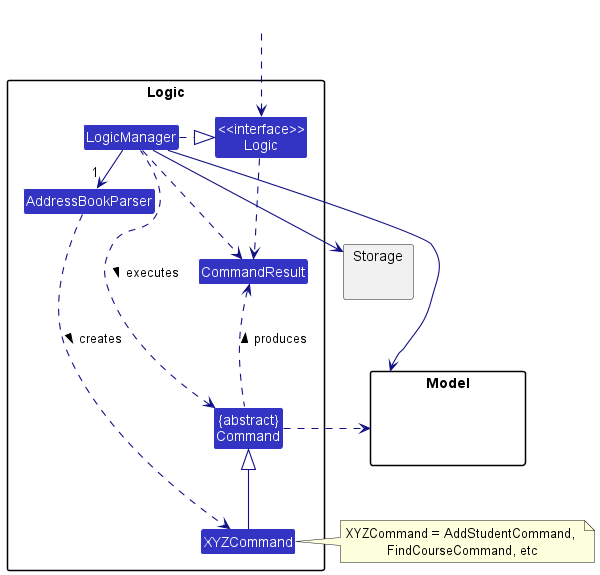

Here’s a (partial) class diagram of the Logic component:

Figure 7

How the Logic component works:

  1. When Logic is called upon to execute a command, it uses the RosterParser class to parse the user command.
  2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddStudentCommand) which is executed by the LogicManager.
  3. The command can communicate with the Model when it is executed (e.g. to add a student).
  4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

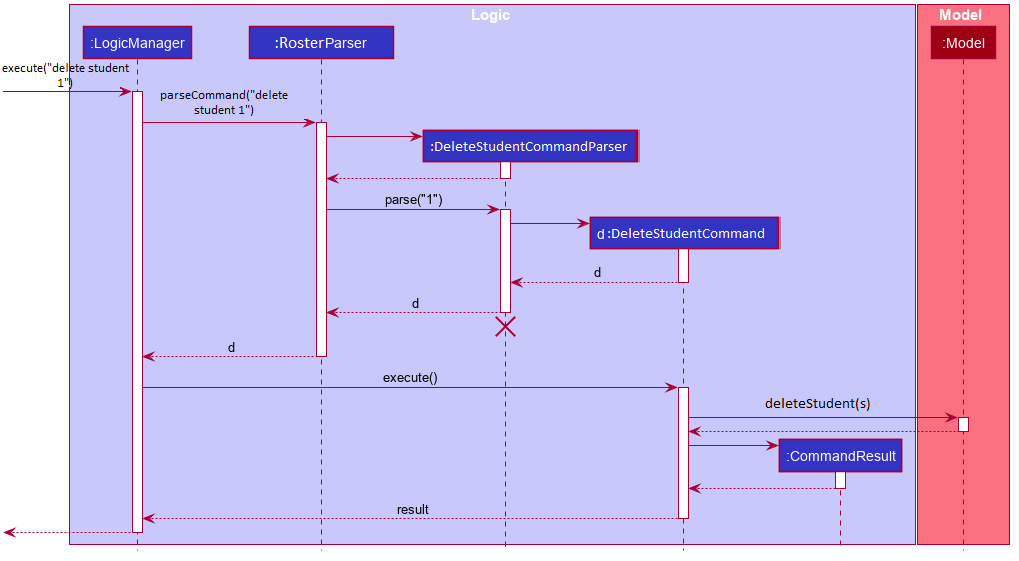

The Sequence Diagram below illustrates the interactions within the Logic component for the execute("delete student 1") API call.

Interactions Inside the Logic Component for the `delete course 1` Command

Figure 8
:information_source: Note: The lifeline for DeleteCommandParser should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

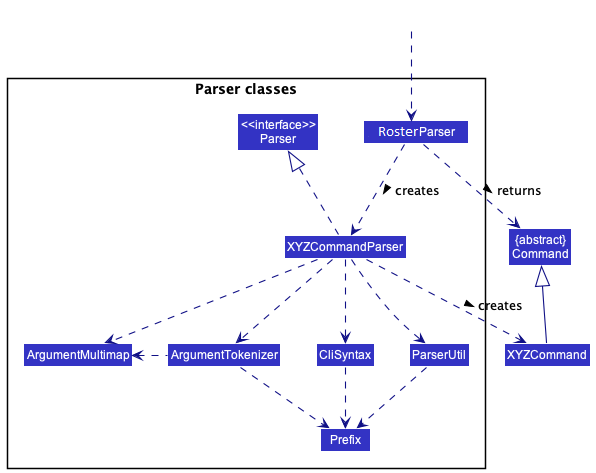

Figure 9

How the parsing works:

  • When called upon to parse a user command, the RosterParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the RosterParser returns back as a Command object.
  • All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

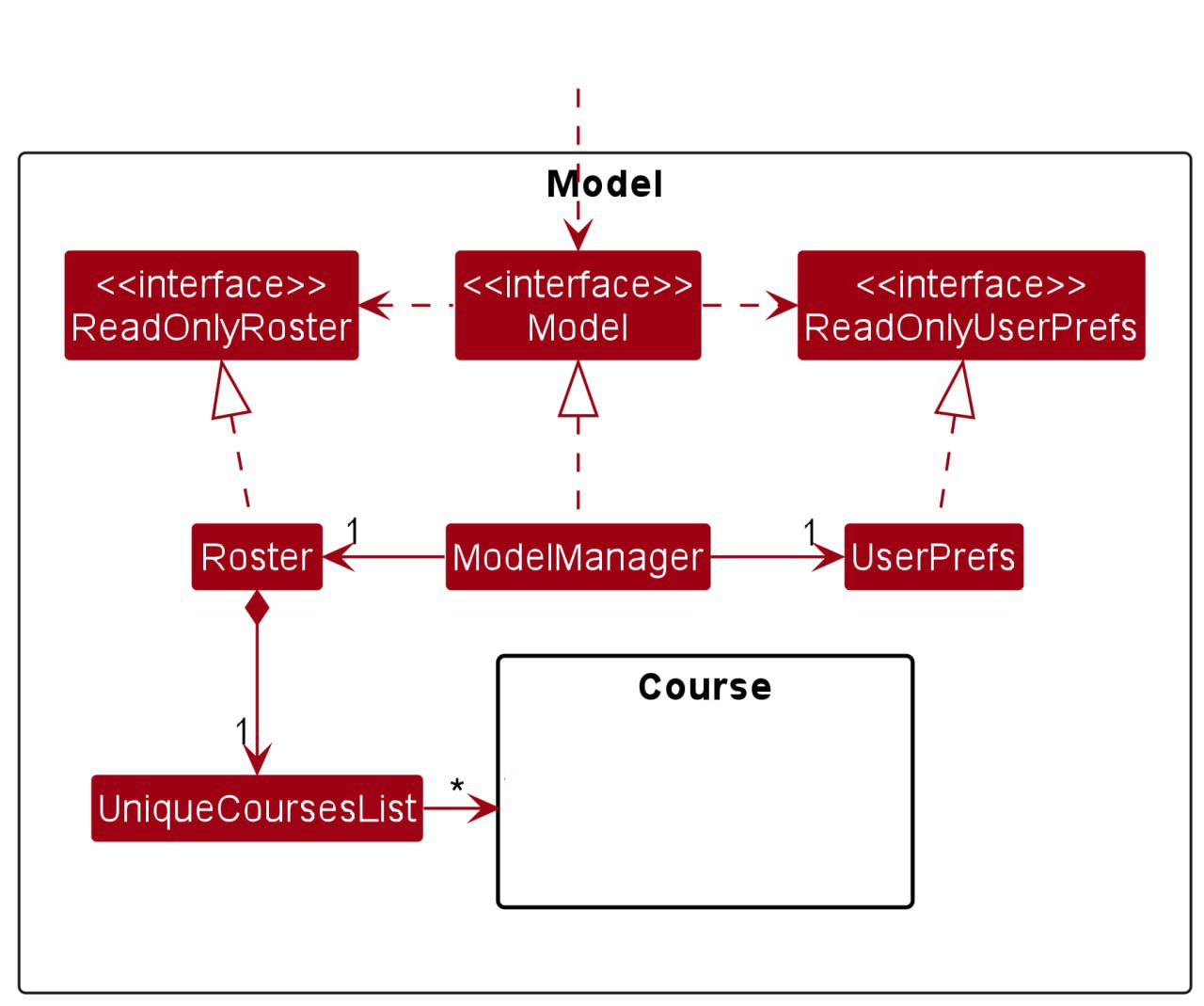

Figure 10

The Model component,

  • stores the roster data i.e., all Course objects (which can subsequently be traversed to access all stored data)
  • stores a CurrentSelection object that is a container object for pointing to the various Course/Group/Student/Session/Task objects that the user has selected.
  • stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
  • stores the Command object that was last executed, as well as its corresponding command string input, for purposes of accessing previous states (i.e like in the case of undo command)
  • does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Detailed implementation of Course can be found under Implementation section.

Storage component

API : Storage.java

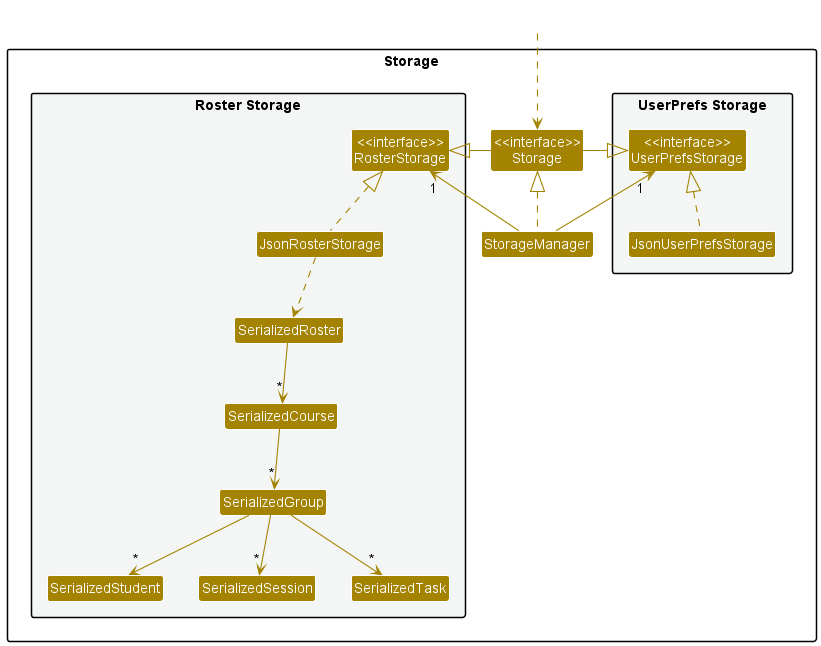

Figure 11

The Storage component,

  • can save both roster data and user preference data in json format, and read them back into corresponding objects.
  • inherits from both RosterStorage and UserPrefsStorage, which means it can be treated as either one (if only the functionality of only one is needed).
  • depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the tfifteenfour.clipboard.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

User Interface Implementation

This subsection describes implementation details related to UI, such as page navigation and design.

Navigation Guide

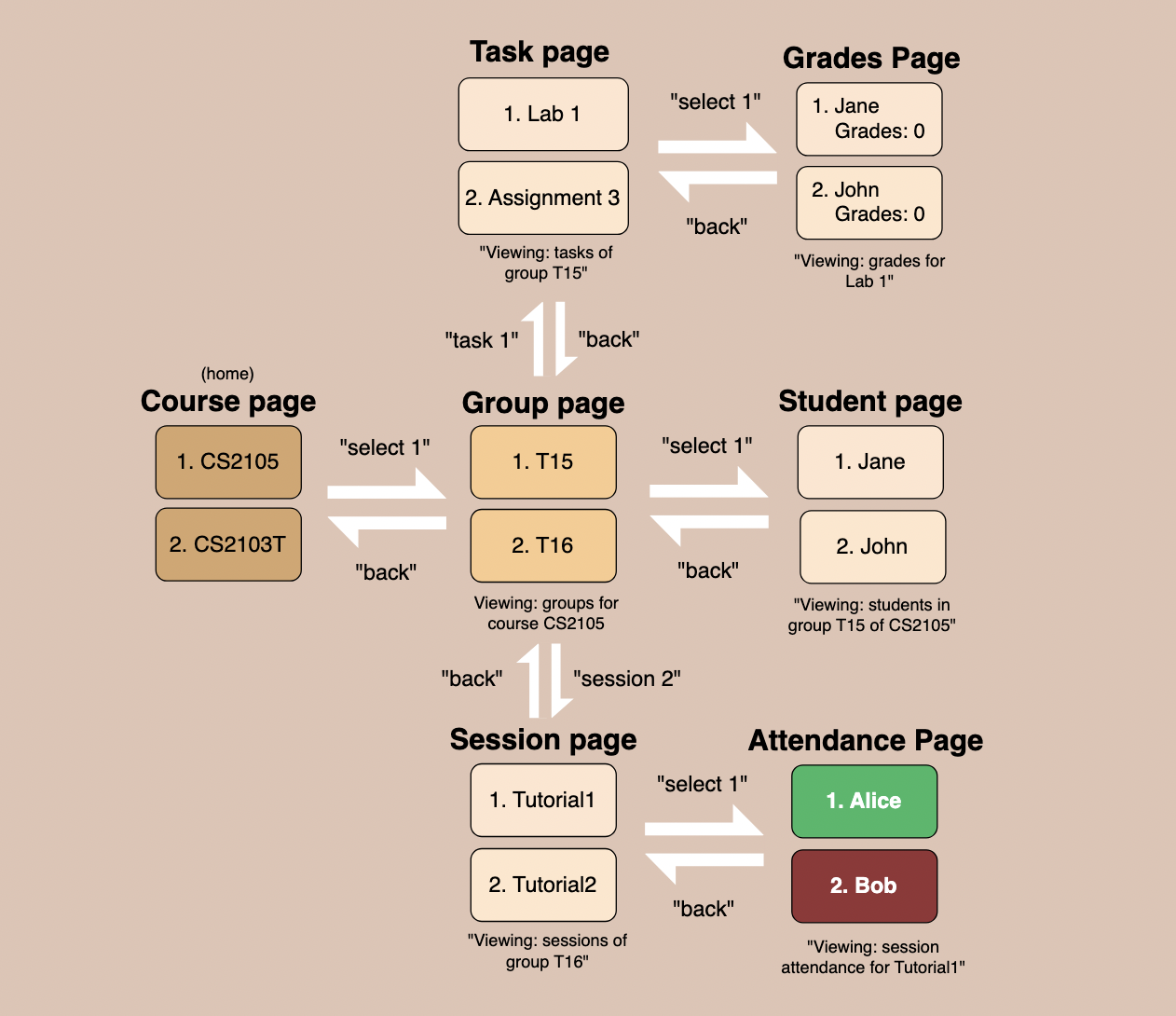

Figure 12: CLIpboard navigation guide

As shown in Figure 12, users can navigate through the application using a combination of select, task, session, and back commands. When a command such as select is called, the left pane or the right pane, or both, will be refreshed in MainWindow.

Select Sequence Diagram

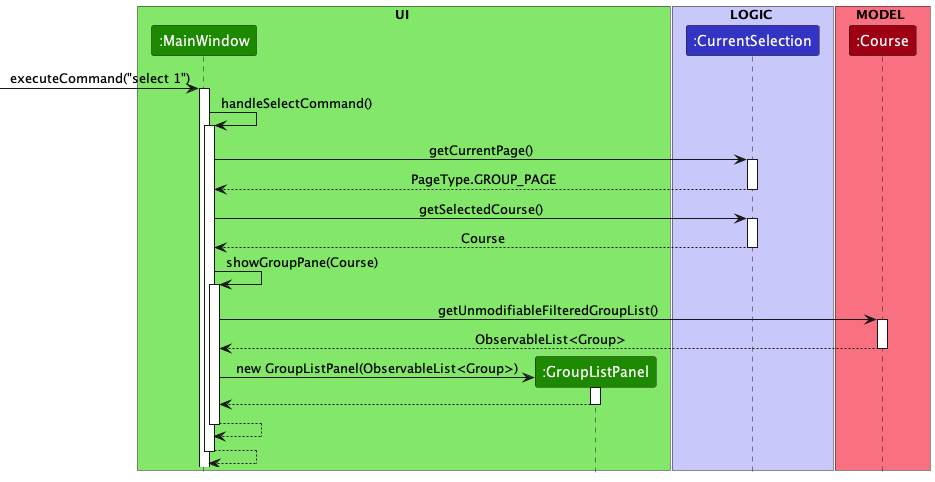

Figure 13: Sequence Diagram for select

Figure 13’s Sequence Diagram depicts how the UI, Logic, and Model components interact when select 1 is called on the Course Page. The user’s selection path (in this case Course -> Group) is tracked by the CurrentSelection class as they navigate from the Course Page to the Group Page.

To display the Group Page after the user selects a Course from the Course Page, the UI first obtains the PageType to be displayed in the GUI from the Logic component. Then, the UI retrieves the selected Course from CurrentSelection and subsequently invokes the showGroupPane method based on the selected Course.

Before creating the GroupListPanel to display the groups in the selected Course, the UI obtains an ObservableList<Group> from the selected Course in the Model component. Each Group in the ObservableList<Group> is then mapped into a GroupListViewCell in GroupListPanel. At the end of the showGroupPane method call, the Left Pane, previously populated by the CourseListPanel, will be refreshed to show the GroupListPanel

This sequence of interactions is similar across each page navigation.

Design considerations

  • Attendance Page Design

Attendance Page

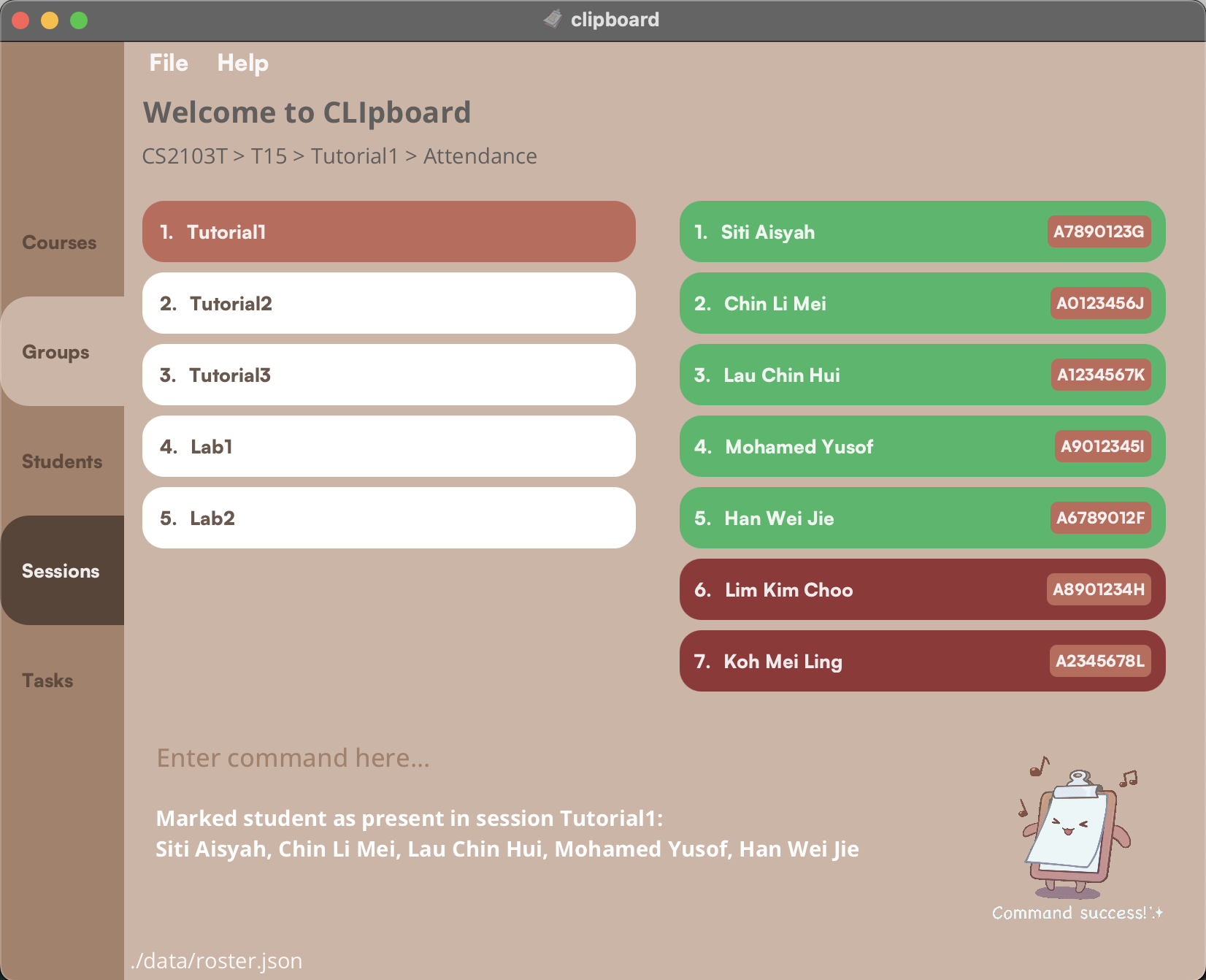

Figure 14: Screenshot of Attendance Page*

In Figure 14, we have a screenshot of the student page, with the Left Pane and Right Pane populated with a SessionListPanel and an AttendanceListPanel respectively. The navigation from Session Page to Attendance Page does not close the SessionListPanel, instead the SessionListPanel remain displayed in the Left Pane and the AttendanceListPanel is displayed in the Right Pane. However, the current page shown in Figure 14 is still treated as the Attendance Page, hence only commands applicable to the Attendance Page is accepted. This also applies to the Grades Page, when the SessionListPanel is displayed alongside the GradesListPanel.

Initially, each student in the Attendance Page will be marked as absent and their individual student cards will be shown in red. After marking a student’s attendance with the mark command, the student card will be changed to green. This change occurs immediately after the command execution by generating a new AttendanceListPanel when a mark command is called. Figure 15 shows the Sequence Diagram when a mark command is executed.

Mark Sequence Diagram

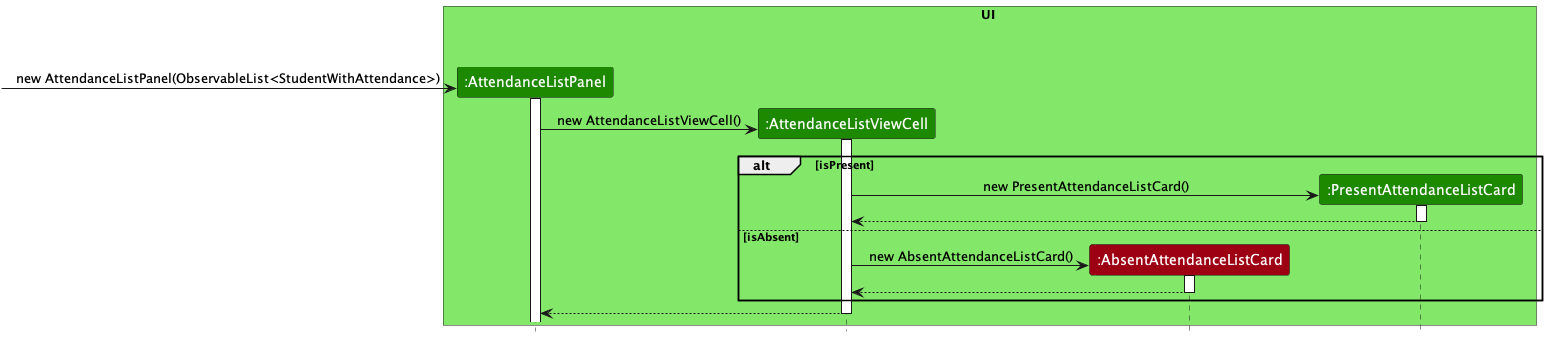

Figure 15: Sequence Diagram of mark command. Due to Plant UML limitations, the alt frame extends slightly beyond the UI frame.

As shown in Figure 15, when a new AttendanceListPanel is initialised, an AttendanceListViewCell will be created. Similar to the sequence described under Figure 13, the AttendanceListPanel takes in an ObservableList<StudentWithAttendance> and maps each StudentWithAttendance into an AttendanceListViewCell. Each StudentWithAttendance has an attendance flag to indicate if they are present or absent for a particular session. Based on the flag, either a new PresentAttendanceListCard (with a green background) or a new AbsentAttendanceListCard (with a red background) will be created for the particular student.

  • Student Page Design

Student Page

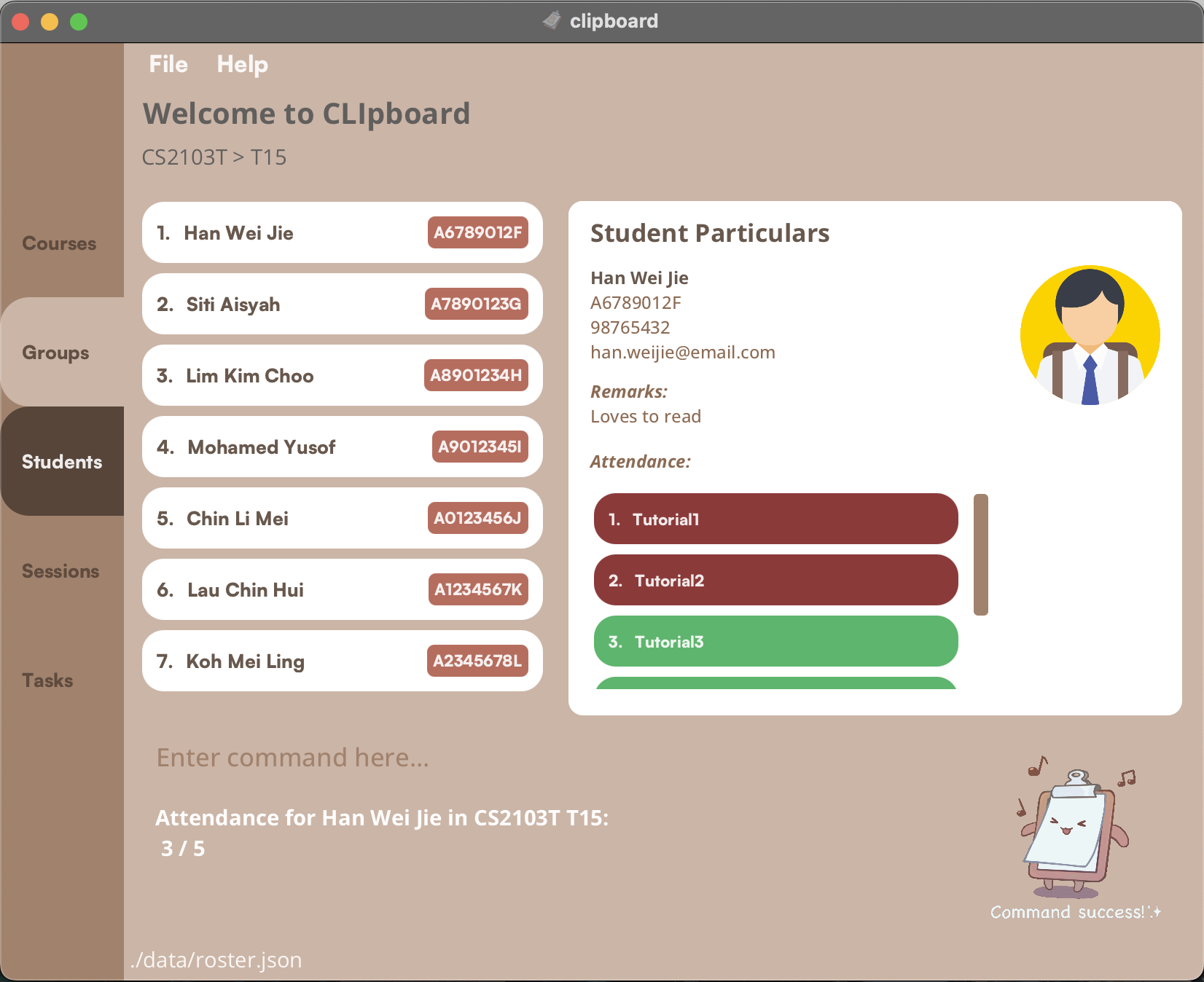

Figure 16: Screenshot of Student Page

In Figure 16, we have a screenshot of the student page, with the Left Pane and Right Pane populated with a StudentListPanel and a StudentViewCard respectively. The user interface has a straightforward dashboard layout that uses a list panel to display Courses, Groups, Sessions, Tasks, or Students in the Left Pane. Since we are on the student page, a list of students is shown. Unlike the Attendance and Grades Page, even though both Left and Right Panes are populated, the page shown in Figure 15 is still the Student Page, hence commands which are applicable to the Student Page are accepted here.

Alternative considerations

StudentListCard

Figure 17: A student list card*

Instead of StudentId, we initially considered displaying the Course and Group the student belongs to in their individual student cards. However, this information is already displayed in the navigation bar (shown in Figure 15, above the StudentListPanel in “CS2103T > T15”). Furthermore, since each Student is uniquely identified by their StudentId (i.e adding another student with the same StudentId to the same Group will throw an error message), it would be more useful to display their StudentId instead.

Another alternative we considered was displaying the full information of a Student in each StudentListCard, however doing so will quickly overwhelm the StudentListPanel if there were many students in the group. As such, we have implemented a separate StudentViewCard that will be shown on the Right Pane (as shown in Figure 15) when the user enters a select command on the Student Page.

CLIpboard Theme

Most of the CLIpboard style components can be found in the CSS file BrownTheme.css, found under src/main/resources/view.

Below is the colour palette used for CLIpboard. CLIpboard mainly adopts brown tones to reflect a wooden traditional clipboard.

Main colours:

A1826D #A1826D : A chestnut-brown colour.

D8B4A4 #D8B4A4 : A light sandy brown used for the background.

Accent colours:

574539 #574539 : A darker shade of brown, mainly used for lettering and page tabs.

B56D5E #B56D5E : A reddish-brown accent for StudentId in Student Page.

8B3A3A #8B3A3A : A deep red colour used for students marked as absent.

5EB56D #5EB56D : A light green colour used for students marked as present.

CLIpboard also utilises two primary fonts, namely the Open Sans font family and the Satoshi font family. Both are free to use, and can be downloaded from Google Fonts and FontShare respectively.

Open Sans:

OpenSans

Satoshi:

Satoshi

Student Roster Object Types

In our implementation, we have defined several object types that accurately represent the student roster, including Course, Group, Session, Task, and Student. These object types are interdependent and have been designed to work together seamlessly to provide a comprehensive solution for managing the student roster.

Object Dependencies

To simplify the management of the student roster and improve the user experience, we have established dependencies between these objects. For example, when a student is added or edited in a Group, any changes will cascade to the list of students in the Session object as well. This ensures consistency across the different object types and reduces the risk of inconsistencies between related objects.

Implementation Details

The dependencies between these objects have been implemented using a combination of object-oriented design principles and programming techniques. The specific implementation details are beyond the scope of this document, but the following high-level overview may be useful:

Each object type has been defined as a separate class with its own set of properties and methods. The relationships between these object types have been established using object references. Changes to one object type will trigger an update to the related object types by means of cascading method calls. Overall, the implementation of these object types and their dependencies has been designed to provide a robust, scalable, and user-friendly solution for managing the student roster. Given below is the class diagram omitting most of the details.

ObjectDependencyClassDiagram

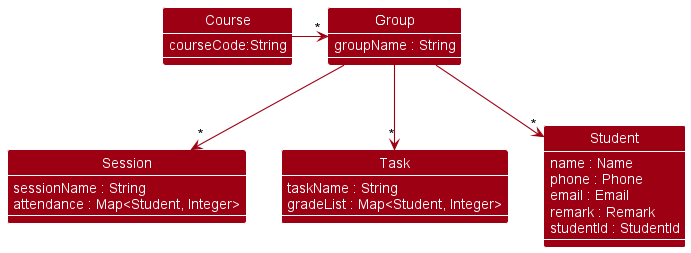

Figure 17

In addition to the above diagram, the following object diagram illustrate a more comprehensive view of the dependencies between various objects during the program’s runtime.

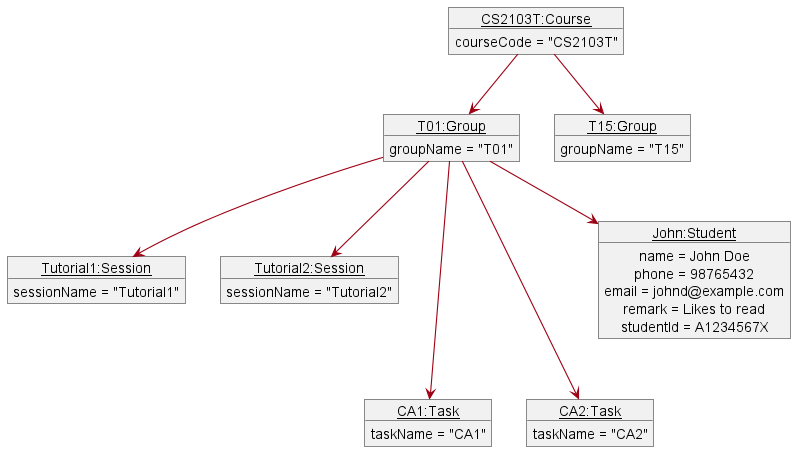

ObjectDependencyObjectDiagram

Figure 18

Undo feature

undo allows restoring up to 5 previous states, but can be modified to restore more/less states.

:information_source: Note: Allowing more states to be saved, or adding more information to be tied to a state, will deteriorate CLIpboard’s performance.

If new commands are to be added, it’s interaction with undo must be kept in mind:

  • For typical commands that do CRUD operations on roster data, undo can handle them.
  • For navigating and UI related commands, some extra handling may be needed to also restore and refresh the UI to the previous state (e.g undo of select command has special handling to refresh GUI elements).

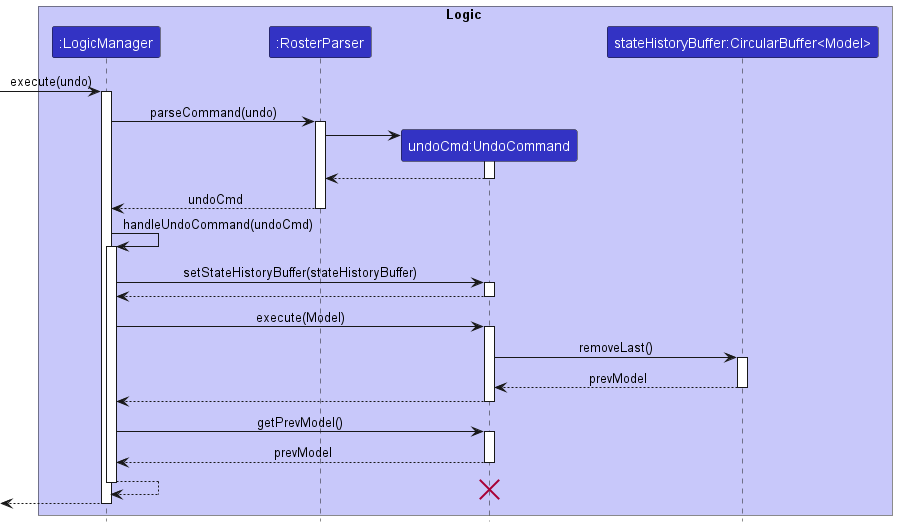

UndoSequenceDiagram

Figure 19
:information_source: Note: The lifeline for UndoCommand should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Design considerations:

Aspect: How undo executes:

  • Alternative 1 (current choice): Saves the entire Roster.
    • Pros: Easy to implement.
    • Cons: May have performance issues in terms of memory usage.
  • Alternative 2: Individual command knows how to undo by itself.
    • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
    • Cons: We must ensure that the implementation of each individual command are correct.

Unique list of items

Represented by the UniqueList<T> class, where T is the type of the item to be contained.

UniqueList is an abstract class that was created to accommodate the storing of different types of items which require list operations. This class provides a generalized solution that can be applied to various scenarios where a list of unique items is needed.

While UniqueList<T> provides some basic list operations, a child class has to be extended from it to override the more intricate operations that require different types of handling for different types of objects. Only the methods that are abstract need to be overriden.

The UniqueList’s in CLIpboard are:

  1. UniqueCoursesList
  2. UniqueGroupsList
  3. UniqueStudentsList
  4. UniqueSessionsList
  5. UniqueTaskslist

Proposed Future Improvement

The extra work of creating child classes of UniqueList can be tedious.

A possible improvement would be allowing UniqueList to be an instantiable class, and at the same time create an interface ListableItem to represent objects to be contained in UniqueList.

The ListableItem interface would require that its classes also support the handling of list operations that were previously handled by a child class of UniqueList. This would then allow UniqueList to be generalisable to any ListableItem object, without the need of creating child classes of UniqueList.

Serialized Objects for Storage

Found in src/main/storage/serializedclasses, these classes are for serializing a Roster and its containing objects into json objects, or vice versa. This serves to store/load data to/from a plaintext json file.

During loading of data

Loading in of data (if a data file exists) is done once during the initialization of the program. The sequence diagram below illustrates how MainApp creates a Model containing the saved data, through interactions with Storage. LoadingStorageSequenceDiagram

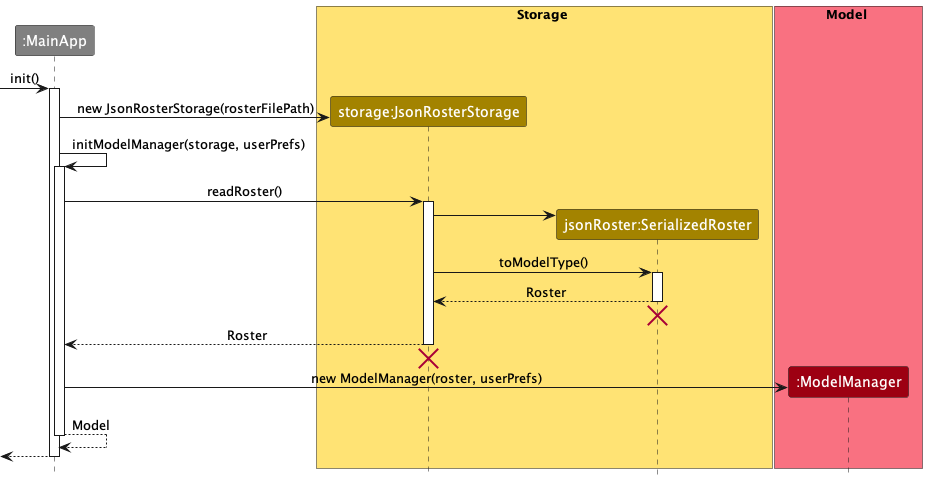

Figure 20
During saving of data

Saving of data is done every time a command is executed. The sequence diagram below illustrates how a Roster is saved into storage. SavingStorageSequenceDiagram

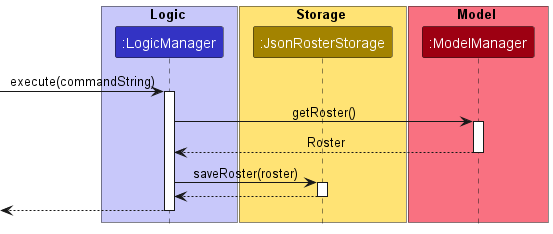

Figure 21

Design considerations:

  • Alternative 1 (current choice): Save the Roster every time a command is executed.
    • Pros: Easy to implement.
    • Cons: Redundant saving operations executed on commands that don’t modify any data.
  • Alternative 2: Save the Roster only when data has been modified.
    • Pros: Optimized performance as saving is only done when needed.
    • Cons: Need to maintain an extra flag in Command or CommandResult on whether a command has modified data.

Planned Enhancements

Unable to see long texts

Currently CLIpboard’s UI automatically truncates very long strings, however the whole string is unable to be seen.

Proposed Changes:

  • Alternative 1: Show full text when mouse hovers over the long string
    • Pros: Provides a solution without potentially cluttering the UI.
    • Cons: Involving mouse action might diminish our selling point as a CLI app optimised for keyboard users.
  • Alternative 2: Text wrapping
    • Pros: Easy to implement.
    • Cons: Could clog up the UI.

After executing find, the list cannot be refreshed

After the user calls find student in the Students page, they are unable to display the original unfiltered list again.

Proposed Changes:

  • Alternative 1 (current choice): Get the user to use the undo command
    • Pros: No need to implement a new command.
    • Cons: Does not feel intuitive.
  • Alternative 2: Implement a list command that displays the unfiltered list
    • Pros: Intuitive for the user.
    • Cons: We are unable to implement it in v1.4 due to the feature freeze.

Orderings of students in Attendance Page and Students Page are not standardised

Currently, the ordering of the student list in Students Page is not consistent with that in the Attendance Page.

Proposed Changes:

  • Alternative 1: Save the student list from the Students Page to transfer it to the Attendance Page
    • Pros: Ordering is standardised everytime.
    • Cons: Might slow the performance down.

Documentation, logging, testing, configuration, dev-ops

Appendix: Requirements

Product scope

Target user profile:

  • has a need to manage a significant number of students from different classes
  • prefer desktop apps over other types
  • can type fast
  • prefers typing to mouse interactions
  • is reasonably comfortable using CLI apps

Value proposition: manage their students’ particulars, grades and class attendance, in one centralised platform.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I want to …​ So that I can…​
* * * user add new students with their particulars create a new profile for a student
* * * user remove students from my class update my class list if anyone needs to be removed
* * * user list out all students in a particular class retrieve a list with all of my students’ names and their particulars
* * * user list all students being taught by me in the semester memorize my students’ name
* * * user view personal information for a particular student easily locate particulars for a single student
* * * user edit students’ information easily update the new information easily for viewing
* * * user filter students based on data such as results or class find and compare student data
* * user remove all students from a class save time and don’t have to delete them one by one
* * user leave a note under a student’s profile keep track of additional information of students
* * returning user familiarise myself with the app‘s UI again with a quick refresher use the app again without needing to re-learn the whole UI
* * forgetful user see photos of the student associated with their name remember their names better and refer to the correct student during class
* * user be able to leave a note under a student’s profile keep track of additional information of students
* * user have a list of all emails of my students from the same class contact my students from that class
* * user Group and view certain students keep track of their grades for group project
* * new user see the app populated with sample data get a sense how the app work when it is in use
* * new user learn more about the available features through tooltips gain proficiency at using the program
* user toggle the app between light and dark mode change the application environment to suit the current light settings for less strain on the eyes
* user have a chart / graph of the assessments grades for every student view students that may require more help
* user keep track of class materials such as slides share these materials with my students
* user save my most used commands save time and don’t have to type them out again
* user see notifications/alert of upcoming events be reminded of assignments that are due soon
* expert user see a graph with the students’ performances from this semester and previous semesters compare the overall performance of my students from this semester and last semester
* expert user have an export function that allows me to export data from the app to an excel sheet easily transfer student data from the app to excel sheet if my higher ups require it

Use cases

(For all use cases below, the System is the CLIpboard and the Actor is the user, unless specified otherwise)

Use case 1: Add a new course

Preconditions: User is on the Course Page

MSS

  1. User requests to add a new course into the list

  2. CLIpboard updates the list with a new course

    Use case ends.

Use case 2: Edit an existing course

Preconditions: User is on the Course Page

MSS

  1. User requests to edit an existing course in the list

  2. CLIpboard updates the course with the new name provided by the user

    Use case ends.

Extensions

  • 1a. The list is empty

    • 1a1. CLipboard shows an error message.

      Use case ends.

  • 1b. The course index does not exist in the list

    • 1b1. CLipboard shows an error message.

      Use case ends.

Use case 3: Delete en existing course

Preconditions: User is on the Course Page

MSS

  1. User requests to delete a course in the list

  2. CLIpboard updates the course list without the course

    Use case ends.

Extensions

  • Similar to UC2 extension

Use case 4: Add a new student

Preconditions: User is on the Student Page

MSS

  1. User requests to add a new student into the list

  2. CLIpboard adds the particulars of the student into the list

    Use case ends.

Extensions

  • 1a. The list is empty

    • 1a1. CLIpboard shows an error message.

      Use case ends.

  • 1b. A student with the same student ID already exists

    • 1b1. CLIpboard shows an error message.

      Use case ends.

Use case 5: Edit an existing student's information

Preconditions: User is on the Student Page

MSS

  1. User requests to edit a specific student in the list

  2. CLIpboard updates the particulars of the student

    Use case ends.

Extensions

  • Similar to UC2 extension, for student index

Use case 6: Delete a student

Preconditions: User is on the Student Page

MSS

  1. User requests to delete a specific student in the list

  2. CLIpboard deletes the student

    Use case ends.

Extensions

  • Similar to UC2 extension, for student index

Use case 7: Update a remark under a student's profile

Preconditions: User is on the Student Page

MSS

  1. User requests to update a remark under a specific student in the list

  2. CLIpboard updates the particulars of the student to the new remark

    Use case ends.

Extensions

  • Similar to UC2 extension, for student index

Non-Functional Requirements

  1. Should work on any mainstream OS as long as it has Java 11 or above installed.
  2. Should be able to hold up to 1000 students without a noticeable sluggishness in performance for typical usage.
  3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.

Glossary

  • Mainstream OS: Windows, Linux, Unix, OS-X
  • Personal information: Student particulars including name, phone number, student id, email, and can include remark.
  • UCx: Represents Use Case x, where x is a use case number

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

:information_source: Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and Shutdown

  1. Initial launch.

    1. Download the latest jar file from our releases and copy into an empty folder.

    2. Open terminal/command prompt and cd to the empty folder. Run the application with java -jar clipboard.jar. The window size may not be optimum.

  2. Saving window preferences.

    1. Resize the window to an optimum size. Move the window to a preferred location. Close the window by typing in exit in the command box.

    2. Re-launch the app by following step 1.2
      Expected: The most recent window size and location is retained.

  3. Exit application.

    1. Type in exit on any page in CLIpboard.

    2. Clicking on the File tab at the navigation bar above and then clicking Exit also exits the app.

Back to Instructions for Manual Testing

General Commands

These commands can be tested on any page. Specific pages are given for this section as a starting point.

  1. Displaying the home page while on the Course Page.

    1. Test case: home
      Expected: Course Page is displayed.

  2. Displaying the previous page while on the Group Page.

    1. Test case: back
      Expected: Course Page is displayed.

  3. Displaying the previous page while on the Course Page.

    1. Test case: back
      Expected: Error message shows up on the log box as the Course Page is the home page.
      The application begins from the home page.

  4. Undoing a select command from the Course Page (the current page to run the test case is the Group Page).

    1. Test case: undo
      Expected: Course Page is displayed.

  5. Opening the help window from the Course Page.

    1. Test case: help
      Expected: Help window for Course Page pops up.

Back to Instructions for Manual Testing

Course Page Commands

These commands should be tested on the Course Page.

Adding a course

  1. Adding a course while the course list is empty or the course does not exist in the course list.

    1. Test case: add course CS3223
      Expected: New course is added into the list. Details of the added course shown in the log box.

    2. Other incorrect add course commands to try: add, add course (where the course code is empty)
      Expected: No course is added. Error details shown in the log box.

  2. Adding a course which already exists in the list.

    1. Test case: add course CS3223
      Expected: No course is added. Error details shown in the log box.

Deleting a course

  1. Deleting a course while all courses are being shown from the Course Page. At least 1 course exists in the list.

    1. Test case: delete course 1
      Expected: First course is deleted from the list. Details of the deleted course shown in the log box.

    2. Test case: delete course 0
      Expected: No course is deleted. Error details shown in the log box.

    3. Other incorrect delete course commands to try: delete, delete course x (where x is larger than the list size)
      Expected: Similar to previous step 1.2 under Deleting a course.

  2. Deleting a course while the course list is empty in the Course Page.

    1. Incorrect delete course commands to try: delete, delete course x (where x is any number)
      Expected: No course is deleted. Error details shown in the log box.

Editing a course

  1. Editing a course which exists in the course list.

    1. Test case: edit course 1 CS4225
      Expected: First course is edited to the new course code. Details of the edited course shown in the log box.

    2. Test case: edit course 0 CS4225
      Expected: No course is edited. Error details shown in the log box.

    3. Other incorrect edit course commands to try: edit, edit course x (where x is any number), edit course x CS4225 (where x is larger than the list size)
      Expected: Similar to previous step 1.2 under Editing a course.

  2. Editing a course while the course list is empty in the Course Page.

    1. Refer to step 1.3 above under Editing a course.

Selecting a course

  1. Selecting a course while on the Course Page.

    1. Test case: select 1
      Expected: First course is selected. Details of the selected course shown in the log box. Page redirected to the corresponding Group Page.

    2. Test case: select x (where x is larger than the list size)
      Expected: No course is selected. Error details shown in the log box.

Finding a course

  1. Finding a course while on the Course Page, with the following courses - CS3223, CS1101, PL1101 in the list.

    1. Test case: find course CS
      Expected: CS3223 and CS1101 is displayed. Details of the found courses shown in the log box.

    2. Test case: find course 1101
      Expected: CS1101 and PL1101 is displayed. Details of the found courses shown in the log box.

    3. Test case: find course CS4225 (this course does not exist in the list)
      Expected: The list is not filtered. Details of no found courses shown in the log box.

    4. Other incorrect find course commands to try: find, find course
      Expected: The list is not filtered. Error details shown in the log box.

Back to Instructions for Manual Testing

Group Page Commands

These commands should be tested on the Group Page.

Adding a group

  1. Adding a group while the group list is empty, or the group does not exist in the group list.

    1. Test case: add group T10
      Expected: New group is added into the list. Details of the added group shown in the log box.

    2. Other incorrect add group commands to try: add, add group (where the group name is empty)
      Expected: No group is added. Error details shown in the log box.

  2. Adding a group into the list containing the following groups - T01, T02, L01.

    1. Test case: add group L02
      Expected: New group is added. Details of the added group shown in the log box.

    2. Test case: add group T01
      Expected: No group is added. Error details shown in the log box.

Deleting a group

  1. Deleting a group while all groups are being shown from the Group Page. At least 1 group exists in the list.

    1. Test case: delete group 1
      Expected: First group is deleted from the list. Details of the deleted group shown in the log box.

    2. Test case: delete group 0
      Expected: No group is deleted. Error details shown in the log box.

    3. Other incorrect delete group commands to try: delete, delete group x (where x is larger than the list size)
      Expected: Similar to previous step 1.2 under Deleting a group.

  2. Deleting a group while the group list is empty in the Group Page.

    1. Incorrect delete group commands to try: delete, delete group x (where x is any number)
      Expected: No group is deleted. Error details shown in the log box.

Editing a group

  1. Editing a group which exists in the group list.

    1. Test case: edit group 1 T02
      Expected: First group is edited to the new group name. Details of the edited group shown in the log box.

    2. Test case: edit group 0 T02
      Expected: No group is edited. Error details shown in the log box.

    3. Other incorrect edit group commands to try: edit, edit group x (where x is any number), edit group x T02 (where x is larger than the list size)
      Expected: Similar to previous step 1.2 under Editing a group.

  2. Editing a group while the group list is empty in the Group Page.

    1. Refer to step 1.3 above under Editing a group.

Selecting a group

  1. Selecting a group while on the Group Page.

    1. Test case: select 1
      Expected: First group is selected. Details of the selected group shown in the log box. Page redirected to the corresponding Students Page.

    2. Test case: select x (where x is larger than the list size)
      Expected: No group is selected. Error details shown in the log box.

Displaying sessions of a group

  1. Selecting a group to display its sessions while on the Group Page.

    1. Test case: session 1
      Expected: First group is selected to view its sessions. Details of the selected group to view its sessions shown in the log box. Page redirected to the corresponding session page for the selected group.

    2. Test case: session x (where x is larger than the list size)
      Expected: No group is selected to view its sessions. Error details shown in the log box.

Displaying tasks of a group

  1. Selecting a group to display its tasks while on the Group Page.

    1. Test case: task 1
      Expected: First group is selected to view its tasks. Details of the selected group to view its tasks shown in the log box. Page redirected to the corresponding Task Page for the selected group.

    2. Test case: task x (where x is larger than the list size)
      Expected: No group is selected to view its tasks. Error details shown in the log box.

Finding a group

  1. Finding a group while on the Group Page, with the following groups - T01, T02, L01 in the list.

    1. Test case: find group T
      Expected: T01 and T02 is displayed. Details of the found groups shown in the log box.

    2. Test case: find group 01
      Expected: T01 and L01 is displayed. Details of the found groups shown in the log box.

    3. Test case: find group T03 (this group does not exist in the list)
      Expected: The list is not filtered. Details of no found groups shown in the log box.

    4. Other incorrect find group commands to try: find, find group
      Expected: The list is not filtered. Error details shown in the log box.

Back to Instructions for Manual Testing

Students Page Commands

These commands should be tested on the Students Page.

Adding a student

  1. Adding a student while the student list is empty or the student does not exist in the course list.

    1. Test case: add student n/John Doe p/98765432 e/johnd@example.com sid/A1234567X
      Expected: New student is added into the list. Details of the added student shown in the log box.

    2. Other incorrect add student commands to try: add, add student (where the name, phone number, email or student ID is not specified)
      Expected: No student is added. Error details shown in the log box.

  2. Adding a student whose student ID already exists in the list.

    1. Test case: add student n/John p/98765432 e/johnd@example.com sid/A1234567X, where another student with student ID A1234567X already exists in the student list
      Expected: No student is added. Error details shown in the log box.

  3. Adding a student whose name already exists in the list.

    1. Test case: add student n/John Doe p/98765432 e/johnd@example.com sid/A1234567X, where John Doe with a different student ID exists in the student list. Expected: New student is added into the list. Duplicate names are allowed as long as the student ID is different. Details of the added student shown in the log box.

Deleting a student

  1. Deleting a student while all students are being shown from the Student Page. At least 1 student exists in the list.

    1. Test case: delete student 1
      Expected: First student is deleted from the list. Details of the deleted student shown in the log box.

    2. Test case: delete student 0
      Expected: No student is deleted. Error details shown in the log box.

    3. Other incorrect delete student commands to try: delete, delete student x (where x is larger than the list size)
      Expected: Similar to previous step 1.2 under Deleting a student.

  2. Deleting a student while the student list is empty in the Student Page.

    1. Incorrect delete student commands to try: delete, delete student x (where x is any number)
      Expected: No student is deleted. Error details shown in the log box.

Editing a student

  1. Editing a student which exists in the course list.

    1. Test case: edit student 1 n/John p/98765432 e/John@gmail.com sid/A2345678X where at least one of the fields n/<NAME>, p/<PHONE_NUMBER>, e/<EMAIL> or sid/<STUDENT_NUMBER> must be provided
      Expected: First student is edited to have the new field details provided. Details of the edited student shown in the log box.

    2. Test case: edit student 0 n/John
      Expected: No student is edited. Error details shown in the log box.

    3. Other incorrect edit student commands to try: edit, edit student, edit student x (where x is any number), edit student x n/John (where x is larger than the list size)
      Expected: Similar to previous step 1.2 under Editing a student.

  2. Editing a student while the student list is empty in the Student Page.

    1. Refer to step 1.3 above under Editing a student.

Selecting a student

  1. Selecting a student while on the Student Page.

    1. Test case: select 1
      Expected: First student is selected. Details of the selected student shown in the log box. Displays the student’s information on the view panel on the right.

    2. Test case: select x (where x is larger than the list size)
      Expected: No student is selected. Error details shown in the log box.

Finding a student

  1. Finding a student while on the Student Page, with the following students - John Doe, Johnny Yu, Alice Yeoh in the list, with respective student IDs A1234567X, A123, A98765432X.

    1. Test case: find student John
      Expected: John Doe and Johnny Yu is displayed. Details of the found students shown in the log box.

    2. Test case: find student A123
      Expected: students with student ID A1234567X and A123 are displayed. Details of the found students shown in the log box.

    3. Test case: find student Alice Yu
      Expected: Alice Yeoh and Johnny Yu are displayed. Details of the found students shown in the log box.

    4. Test case: find student Alex Tan (this student does not exist in the list)
      Expected: The list is not filtered. Details of no found students shown in the log box.

    5. Other incorrect find student commands to try: find, find student
      Expected: The list is not filtered. Error details shown in the log box.

Deleting a student

  1. Deleting a student while all students are being shown from the Students Page.

    1. Test case: delete student 1
      Expected: First student is deleted from the list. Details of the deleted student shown in the log box.

    2. Test case: delete student 0
      Expected: No student is deleted. Error details shown in the log box.

    3. Other incorrect delete student commands to try: delete, delete student x, (where x is larger than the list size)
      Expected: No student is deleted. Error details shown in the log box.

  2. Deleting a student while the student list is empty on the Students Page.

    1. Test case: delete student 1
      Expected: No student is deleted. Error details shown in the log box.

Copying a student’s email

  1. Copying a student’s email to your clipboard, while there is more than one student on the Students Page.
    1. Test case: copy 1
      Expected: First student’s email is copied to your clipboard. Successful command message shown in the log box.
    2. Test case: copy 0
      Expected: No student email is copied. Error details shown in the log box.
    3. Other incorrect copy commands to try: copy, copy x, (where x is larger than the student list)
      Expected: No student email is copied. Error details shown in the log box.
  2. Copying a student’s email while the student list is empty on the Students Page.
    1. Test case: copy 1
      Expected: Nothing is copied to your clipboard. Error details shown in the log box.

Sorting students by their name or student ID

  1. Sorting student list by their name
    1. Test case: sort name
      Expected: Student list sorted by name in alphabetical order.
  2. Sorting student list by their student IDs
    1. Test case: sort id
      Expected: Student list sorted by student ID.

Adding or deleting a remark

  1. Adding a remark to a student that does not have an existing remark.
    1. Test case: remark 1 Loves photography
      Expected: Adds a remark Loves photography to the first student on the student list. Details of the new remark displayed in the log box.
    2. Test case: remark 0 Loves sci-fi movies
      Expected: Displays error message on the log box.
    3. Other incorrect remark commands to try: remark, remark x, (where x is larger than the student list)
      Expected: Displays error message on the log box.
  2. Adding a remark to a student that already has a remark.
    1. Test case: remark 1 Plays football
      Expected: Replaces the previous remark that the first student has with Plays football. Details of the new remark displayed in the log box.
    2. Test case: remark 0 Loves sci-fi movies
      Expected: Displays error message on the log box.
    3. Other incorrect remark commands to try: remark, remark x, (where x is larger than the student list)
      Expected: Displays error message on the log box.
    4. Test case: remark 1 where the first student already has a remark.
      Expected: Deletes the remark from the first student listed in the student list.

Uploading a student’s photo

  1. Uploads a student’s photo to be displayed in the student roster.
    1. Test case: upload <LOCAL_FILE_PATH>, where file path can be either relative or absolute file path
      Example: upload C:/Users/AlexYeoh/Desktop/A0123456X.png
      Expected: Image A0123456X.png will be uploaded to the CLIpboard data folder and the photo will be displayed in the profile of student with student ID A0123456X.
    2. Test case: upload <INVALID_FILE_PATH>, where file path does not exist.
      Expected: Error message displayed on the log box.

Viewing a student’s attendance throughout the course after selecting him/her

  1. View a student’s attendance throughout the course after using select command on the Students Page.
    1. Test case: attendance
      Expected: Displays the student’s attendance throughout the course on the log box and the view panel on the right.

Back to Instructions for Manual Testing

Session Page Commands

These commands should be tested on the Session Page.

Adding a session

  1. Adding a session while the session list is empty, or the session does not exist in the session list.

    1. Test case: add session Tutorial1
      Expected: New session is added into the list. Details of the added session shown in the log box.

    2. Other incorrect add session commands to try: add, add session (where the session name is empty)
      Expected: No session is added. Error details shown in the log box.

  2. Adding a session into the list containing the following sessions - Tutorial1, Tutorial2, Lab1.

    1. Test case: add session Tutorial3
      Expected: New session is added. Details of the added session shown in the log box.

    2. Test case: add session Tutorial1
      Expected: No session is added. Error details shown in the log box.

Deleting a session

  1. Deleting a session while all sessions are being shown from the Session Page. At least 1 session exists in the list.

    1. Test case: delete session 1
      Expected: First session is deleted from the list. Details of the deleted session shown in the log box.

    2. Test case: delete session 0
      Expected: No session is deleted. Error details shown in the log box.

    3. Other incorrect delete session commands to try: delete, delete session x (where x is larger than the list size)
      Expected: Similar to previous step 1.2 under Deleting a session.

  2. Deleting a session while the session list is empty in the Session Page.

    1. Incorrect delete session commands to try: delete, delete session x (where x is any number)
      Expected: No session is deleted. Error details shown in the log box.

Editing a session

  1. Editing a session which exists in the Session list.

    1. Test case: edit session 1 Tutorial4
      Expected: First session is edited to the new session name. Details of the edited session shown in the log box.

    2. Test case: edit session 0 Tutorial4
      Expected: No session is edited. Error details shown in the log box.

    3. Other incorrect edit session commands to try: edit, edit session x (where x is any number), edit session x Tutorial4 (where x is larger than the list size)
      Expected: Similar to previous step 1.2 under Editing a session.

  2. Editing a session while the session list is empty in the Session Page.

    1. Refer to step 1.3 above under Editing a session.

Selecting a session

  1. Selecting a session while on the Session Page.

    1. Test case: select 1
      Expected: First session is selected. Details of the selected session shown in the log box. Page redirected to the corresponding Attendance Page.

    2. Test case: select x (where x is larger than the list size)
      Expected: No session is selected. Error details shown in the log box.

  2. Selecting a session while the session list is empty in the Session Page.

    1. Refer to step 1.2 above under Selecting a session

Finding a session

  1. Finding a session while on the Session Page, with the following sessions - Tutorial1, Tutorial2, Lab1 in the list.

    1. Test case: find session 1
      Expected: Tutorial1 and Lab1 is displayed. Details of the found sessions shown in the log box.

    2. Test case: find session tutorial
      Expected: Tutorial1 and Tutorial2 is displayed. Details of the found sessions shown in the log box.

    3. Test case: find session Tutorial3 (this session does not exist in the list)
      Expected: The list is not filtered. Details of no found session(s) shown in the log box.

    4. Other incorrect find session commands to try: find, find session
      Expected: The list is not filtered. Error details shown in the log box.

Back to Instructions for Manual Testing

Attendance Page Commands

These commands should be tested on the Attendance Page.

Marking selected student(s) as present

  1. Marking selected student as present, with at least one student in the list.

    1. Test case: mark 1
      Expected: First student is marked as present. Details of the student marked as present shown in the log box.

    2. Other incorrect mark commands to try: mark, mark x (where x is larger than the student list size, mark -1
      Expected: No student is marked as present. Error details shown in the log box.

  2. Marking selected students as present, with 6 students in the list.

    1. Test case: mark 1, 4, 6
      Expected: First, fourth and sixth students are marked as present. Details of the students marked as present shown in the log box.
    2. Test case: mark 2, 3, 5, 7 (where there is no student in the seventh index)
      Expected: No student is marked as present. Error details shown in the log box.
    3. Other incorrect mark commands to try: mark, mark 0
      Expected: No student is marked as present. Error details shown in the log box.

Marking selected student(s) as absent

  1. Marking selected student as absent, with at least one student in the list.

    1. Test case: unmark 1
      Expected: First student is marked as absent. Details of the student marked as absent shown in the log box.

    2. Other incorrect unmark commands to try: unmark, unmark x (where x is larger than the student list size), unmark -1
      Expected: No student is marked as absent. Error details shown in the log box.

  2. Marking selected students as absent, with 6 students in the list.

    1. Test case: unmark 1, 4, 6
      Expected: First, fourth and sixth students are marked as absent. Details of the students marked as absent shown in the log box.
    2. Test case: unmark 2, 3, 5, 7 (where there is no student in the seventh index)
      Expected: No student is marked as absent. Error details shown in the log box.
    3. Other incorrect unmark commands to try: unmark, unmark 0
      Expected: No student is marked as absent. Error details shown in the log box.

Viewing the overall attendance of the session

  1. Viewing the overall attendance of the session.
    1. Test case: attendance
      Expected: Overall attendance of the session is displayed in the log box.

Back to Instructions for Manual Testing

Task Page Commands

These commands should be tested on the Task Page.

Adding a task

  1. Adding a task while the task list is empty, or the task does not exist in the task list.

    1. Test case: add task PE1
      Expected: New task is added into the list. Details of the added task shown in the log box.

    2. Other incorrect add task commands to try: add, add task (where the task name is empty)
      Expected: No task is added. Error details shown in the log box.

  2. Adding a task into the list containing the following tasks - CA1, CA2, Critical Reflection 1.

    1. Test case: add task CA3
      Expected: New task is added. Details of the added task shown in the log box.

    2. Test case: add task CA1
      Expected: No task is added. Error details shown in the log box.

Deleting a task

  1. Deleting a task while all tasks are being shown from the Task Page. At least 1 task exists in the list.

    1. Test case: delete task 1
      Expected: First task is deleted from the list. Details of the deleted task shown in the log box.

    2. Test case: delete task 0
      Expected: No task is deleted. Error details shown in the log box.

    3. Other incorrect delete task commands to try: delete, delete task x (where x is larger than the list size)
      Expected: Similar to previous step 1.2 under Deleting a task.

  2. Deleting a task while the task list is empty in the Task Page.

    1. Incorrect delete task commands to try: delete, delete task x (where x is any number)
      Expected: No task is deleted. Error details shown in the log box.

Editing a task

  1. Editing a task which exists in the task list.

    1. Test case: edit task 1 CA4
      Expected: First task is edited to the new task name. Details of the edited task shown in the log box.

    2. Test case: edit task 0 CA4
      Expected: No task is edited. Error details shown in the log box.

    3. Other incorrect edit task commands to try: edit, edit task x (where x is any number), edit task x CA4 (where x is larger than the list size)
      Expected: Similar to previous step 1.2 under Editing a task.

  2. Editing a task while the task list is empty in the Task Page.

    1. Refer to step 1.3 above under Editing a task.

Selecting a task

  1. Selecting a task while on the Task Page.

    1. Test case: select 1
      Expected: First task is selected. Details of the selected task shown in the log box. Page redirected to the corresponding Grades Page.

    2. Test case: select x (where x is larger than the list size)
      Expected: No task is selected. Error details shown in the log box.

Finding a task

  1. Finding a task while on the Task Page, with the following tasks - CA1, CA2, Critical Reflection 1 in the list.

    1. Test case: find task 1
      Expected: CA1 and Critical Reflection 1 is displayed. Details of the found tasks shown in the log box.

    2. Test case: find task CA
      Expected: CA1 and CA2 is displayed. Details of the found tasks shown in the log box.

    3. Test case: find task CA3 (this task does not exist in the list)
      Expected: The list is not filtered. Details of no found task(s) shown in the log box.

    4. Other incorrect find task commands to try: find, find task
      Expected: The list is not filtered. Error details shown in the log box.

Back to Instructions for Manual Testing

Grades Page Commands

These commands should be tested on the Grades Page.

Assigning a grade to a student

  1. Assigning a grade to a student, with at least one student in the list.

    1. Test case: assign 1 80
      Expected: First student is assigned the grade. Details of the student assigned a grade shown in the log box.

    2. Other incorrect assign commands to try: assign, assign x (where x is larger than the student list size) , assign x -1 or assign x 101 (where x is a valid index from the student list)
      Expected: No student is assigned a mark. Error details shown in the log box.

Back to Instructions for Manual Testing

Saving data

  1. Dealing with missing/corrupted data files

    1. Test case: Corrupted data file. This includes any invalid fields in roster.json located in tp/data.
      Expected: A new set of roster sample data from sampleRoster.json will be loaded into the original file. Do exit the app for the new data from the uncorrupted sample file to overwrite roster.java.

    2. Test case: Missing data file. This indicates that roster.java does not exist in tp/data.
      Expected: A set of roster sample data from sampleRoster.json will be copied and loaded into a newly created roster.java. Do exit the app for roster.java to be created.

Back to Instructions for Manual Testing

Appendix: Effort

Multiple Object Types

One of the main challenges we faced was establishing dependencies between the various object types in a way that ensured consistency and minimized data duplication. This is in contrast to AB3 which has only 1 main object type (Person) to manipulate in the AddressBook. Detailed implementation is described under Implementation.

Page Navigation

As CLIpboard has multiple different pages to display different types of objects at a given time. So, we needed to keep track of the current page, and the possible pages to navigate to.

Additionally, navigating a page also meant traversing the object hierarchy, and we had to store a pointer to the objects selected by the user. All these were done through the CurrentSelection class.

Adding page navigation added more factors to be considered. These include restricting certain commands to only be allowed on certain pages, commands executing differently depending on the current page, and handling the loading of appropriate GUI elements respective to the page.

Storage

As compared to AB3, CLIpboard maintains several more types of objects to store. These added types of objects needed their own respective classes to serialize them into json objects.

The added types also had a specific hierarchy (e.g Roster -> Course -> Group -> Student), different data fields, as well as a deeper serialization depth than AB3, which required further modification to the storage classes to handle.

Back to Appendix: Effort
